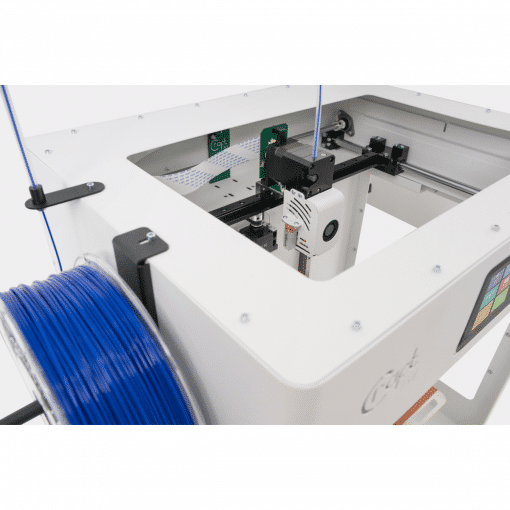

CraftBot Flow XL
HUGE PRINT VOLUME:
Our new printers have larger print volume than the market average. FLOW IDEX XL is the biggest Plug & Play IDEX on the market.

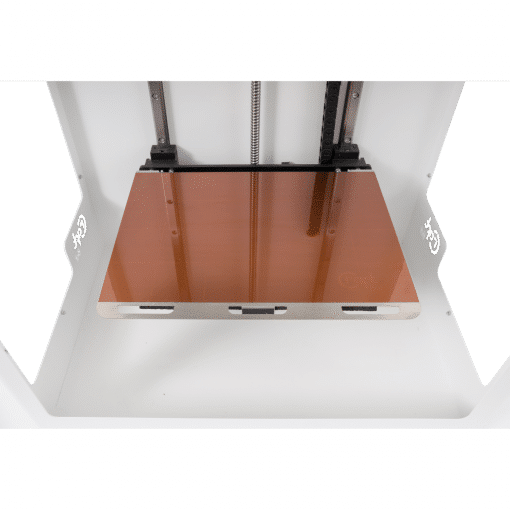

UNIQUE DESIGNED PRINTING BED – FOR THE STRONG ADHESION & EASY REMOVAL:
The heated bed with metal and tempered glass, and Kapton combination ensures the maximum adhesion during printing, while the flexible top plate makes the removal easy even in the case of very flat objects.
MESH BED LEVELING
– SIMPLIFY THE CALIBRATION PROCESS:
– SIMPLIFY THE CALIBRATION PROCESS:
The user-friendly semi-automatic bed leveling system makes the very first steps easy and the proper calibration settings brings you higher printing accuracy. Beside the automatic XY calibration we have built in a semi-automatic, electronically aided Z calibration as well into our IDEX printers.
PRINT PAUSE & RESUME:
You can just pause printing change color whenever you want, and this function also helps you in case of blackout.
NEW PR3DATOR MOTHERBOARD
– FOR THE MAXIMUM SPEED:
– FOR THE MAXIMUM SPEED:
32 Bit fast for more accurate and precise control. Our mainboard is equipped with the industry leading motor control system, extended features and great interface connections. It is also a power saving solution.
RASPBERRY PI IS THE ENGINE OF HMI
– ENABLES FUTURE ENHANCEMENTS:
– ENABLES FUTURE ENHANCEMENTS:
A brand new microcomputer which supports your effective working time. Ultra fast response times, unified user interface, stable Linux operating system in a modern, hi-tech design, future-proof execution.
WEB INTERFACE, IOT
– FOR THE INDUSTRY 4.0 COMPATIBILITY:
– FOR THE INDUSTRY 4.0 COMPATIBILITY:
Each printer has its own responsive interface with a simple control option connected to the owner PC via a secure intranet connection. In addition the built-in camera facilitates working processes. The platform-independent access, the programmable API, the fine-tuning CraftWare software and compatibility with even a heterogeneous printer farm brings you a totally personalized option to control your work.

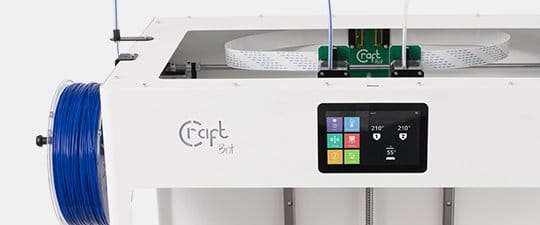

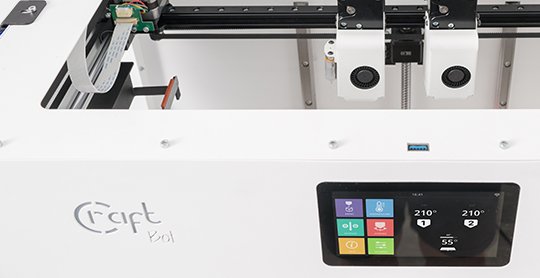

5” COLOR TOUCH SCREEN
– FOR THE INNOVATIVE DESIGN
– FOR THE INNOVATIVE DESIGN
LED STATUS INDICATOR
– MAXIMIZE THE USER EXPERIENCE
– MAXIMIZE THE USER EXPERIENCE

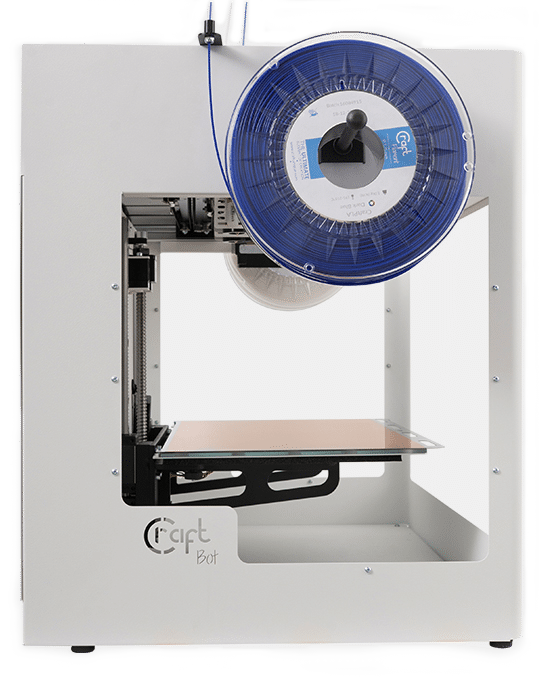

REINFORCED STEEL FRAME
– MAKES CRAFTBOTS “TANK”:
– MAKES CRAFTBOTS “TANK”:
Reinforced double-shell structure and robust extruded aluminum profiles along the Z axis. Even though our new printers have larger print volume, they are rocksolid printers and can be a very reliable workmate for any of your requirements. We can also minimize the damage during the delivery with this new design.

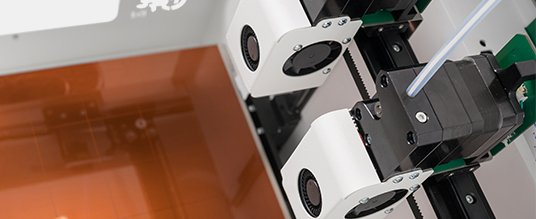

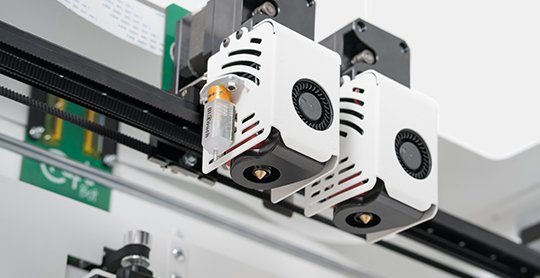

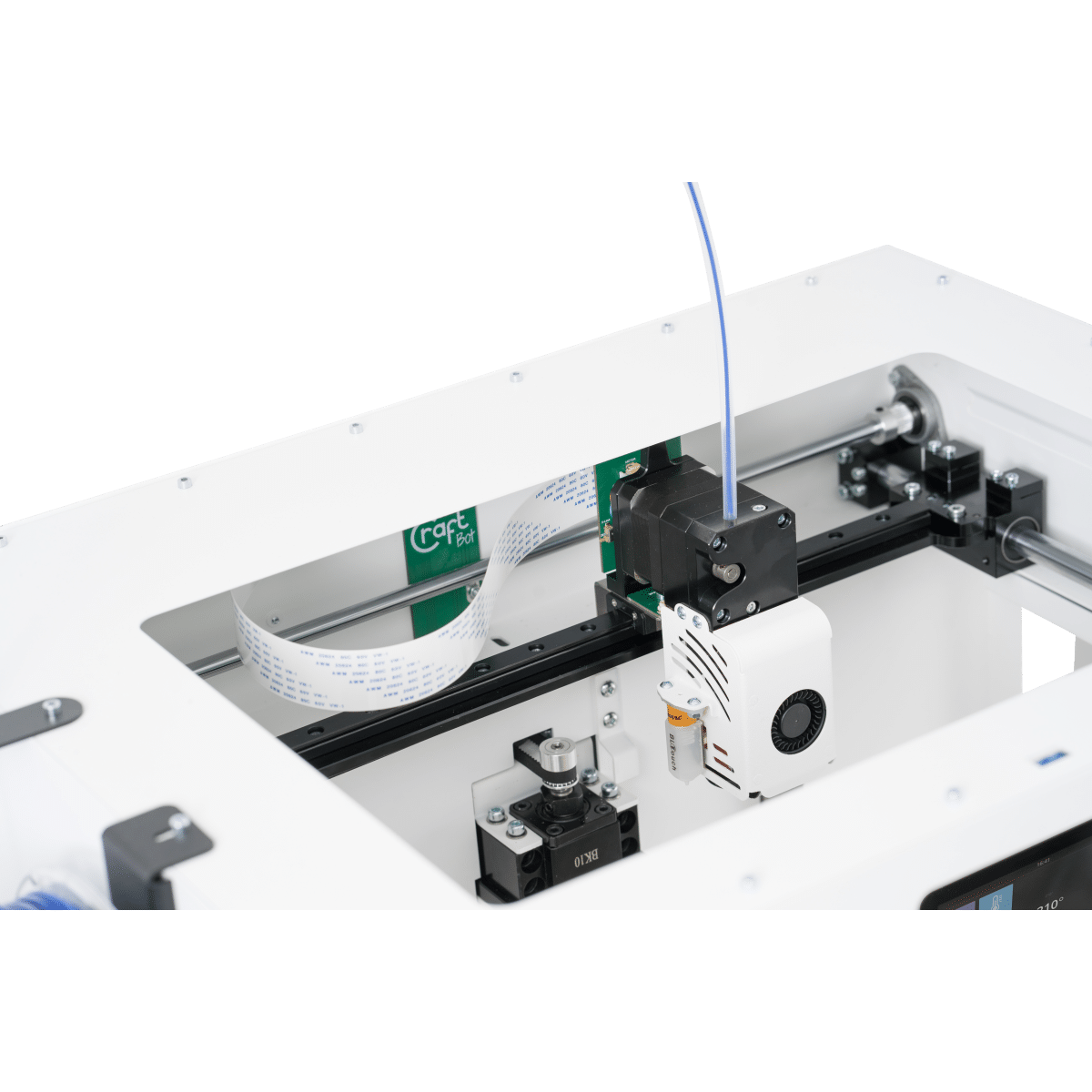

NEW ALL METAL HOTENDS:
Exceptional quality printings and less filament jam. Due to the inclusion of an all-metal hotend, CraftBot is able to print in exceptional quality. This makes it perfect to also print in more specialist materials, like wood and brass filaments.
NEW FILAMENT MONITORING SENSOR
– FOR THE SMOOTH OPERATION:
– FOR THE SMOOTH OPERATION:
Due to our new filament sensor you can minimize breakdowns caused by filament errors. The mechanical and electronical parts of the integrated monitoring system are built-in in the extruders for the smooth filament dosage. Less jam and filament slip are guaranteed.


FILAMENT USAGE:
PLA, ABS, PET, Nylon, Carbon and many more
– up to 300 °C
– up to 300 °C

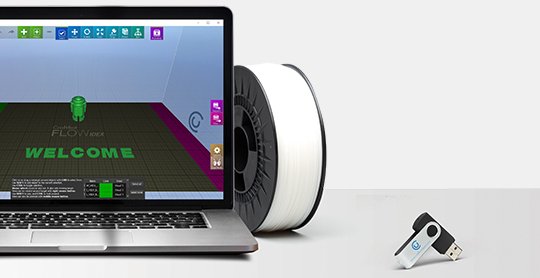

SLICER:
CraftWare – but compatible with other slicer programes as well – generating gcodes
CraftWare – but compatible with other slicer programes as well – generating gcodes
Technology | Fused Filament Fabrication (FFF) | |
Extruder technology | Direct drive single extruder | |
Build volume | 300 x 200 x 500 mm – 30 L | |
Frame dimension | 485 x 400 x 790 mm | |
Shipping weight (net weight) | 42.5 kg (32kg) | |
Filament types | Open filament | |
Operating nozzle temperature | 180-300 °C | |
Operating heated build plate temperature | 30-110 °C | |
Layer resolution | 50 micron | |
Web platform, IoT integration | ||
Built in camera | ||
Mesh bed leveling – BL Touch | ||
Rapsberry PI HMI Engine | ||
IoT integration | ||
Magnetic flex metal build plate | ||
5″ Color LCD touchcreen | ||
Filament Monitoring Sensor |
