Fast printing speed
Photon Mono X can print a typical 12cm / 4.7in. model in 1.5 hours.
High light transmittance
High light transmittance makes quick forming possible.
Large build volume
print up to 9.6 x 7.8 x 4.8 in. / 24.5 x 19.7 x 12.2 cm (HWD) at a time
Sharp edges and corners
Adopting an industry-leading screen with 350:1 contrast ratio.
For Freedom to Make

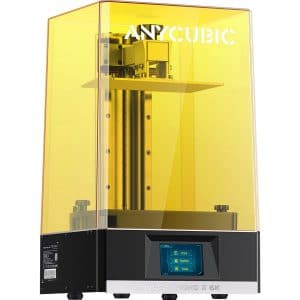

Anycubic Photon Mono X 6K can print up to 9.6 x 7.8 x 4.8 in. / 24.5 x 19.7 x 12.2 cm (HWD) at a time, similar dimensions to a super midi rugby ball. 199.1 oz. / 1.6 gal. / 5.9 L total build volume leaves more space and freedom for you to make any shapes of cubic.
6K Vivid Details
With 5,760 x 3,600 px resolution, Anycubic Photon Mono X 6K’s screen has a total number of over 20 million pixels, which is 125% higher than Anycubic Photon Mono X and its rivals’ 4K resolution screen. High resolution brings vivid details to your 3D models.
Sharp Edges and Corners
Adopting an industry-leading screen with 350:1 contrast ratio, 75% higher than Anycubic Photon X and its rivals’ 200:1, Anycubic Photon Mono X 6K provides your 3D models with extremely sharp and clear edges and corners.
Protect What Matters
In order to better protect its premium screen, Anycubic Photon Mono X 6K added a dedicated and replaceable anti-scratch film above the screen itself, making that expensive screen much more durable than its rivals.
Print, One Step Ahead
With an impressive print speed at ≤ 8 cm/hr. / 3.15 in./hr., Photon Mono X can print a typical 12cm / 4.7in. model in 1.5 hours, which takes 4.5 hours less than Photon’s 6 hours, and 1.5 hours less than its rivals’ 3 hours. Fast printing saves your time wasted on waiting.
Powerful Light Matrix
40 bright LED lights are placed into a matrix to make up a powerful and parallel light source, so that Anycubic Photon Mono X 6K can provide ≥90% light uniformity and ≤ 44,395 lux power density to each layer, making fast printing possible.
High Light Transmittance
Anycubic Photon Mono X 6K is equipped with an industry leading screen with 6% light transmittance, which is 200% higher than Anycubic Photon Mono X and its rivals’ 2%. High light transmittance makes quick forming possible.
With 30%-100% light power regulation, Anycubic Photon Mono X 6K supports not only ordinary 405nm UV resins, but also special resins. In addition, adjusting the light power appropriately can extend the lifespan of both the screen and light significantly.
9.25” Large Screen
Anycubic Photon Mono X 6K is equipped with a large 9.25” screen, which is 185% larger than Anycubic Photon’s 5.5” screen, 138% larger than a common 6” screen, and 8% larger than Photon Mono X and its rivals’ 8.9” in screen area.
|Resin Print Technology||UV LCD|
|Resin UV Wavelength||405 nm|
|Resin UV Light Type||Matrix UV Light Source|
|Resin Display Type||monochrome LCD|
|Resin Display resolution X||5760 pixel|
|Resin Display resolution Y||3600 pixel|
|Resin Display Resolution||34 µm|
|Build Area||197 mm x 122 mm x 245 mm|
|Installation Space / Requirements|
|Total Mass Overall Dimensions||475 mm x 29 mm x 27 mm|
|Total Weight||24.3 kg|
|Max Power Consumption||120 W|
|Layer Height||0.01 – 0.15 mm|
